Converting time strings into numbers

4 replies Last reply

  1. From a CSV, I have got a list of times in the format MM:SS, but I wish to convert these times to values that I can use for the radiuses of circles. Any ideas how I can achieve this.

    Copy link
  2. NodeBox team

    We need time nodes!

    Do you just have hours and seconds? Do you want to have a full day converted to 360 degrees?

    Copy link
  3. from these times I want to create circles with the radius proportional to the time... so 1:00 equals a radius of 1... 2:30 equals a radius of 2.5

    I've attached the .csv... the field I want to use is the timeto field

    Copy link
  4. NodeBox team

    This requires a bit of custom code. Here's a custom Python script that does the conversion:

    def time_to_value(t):
        h, m = t.split(":")
        return int(h) * 60 + int(m)


    What it does:

    • First, it takes the input value t and splits it on the ":". This separates the hours from the minutes. Hours are stored in a variable h, minutes are stored in a variable m.
    • Note that these are still strings, so we need to convert them to integers. This is done using int(h).
    • Since one hour is equivalent to 60 minutes, we multiply the hours by 60 and add the minutes.

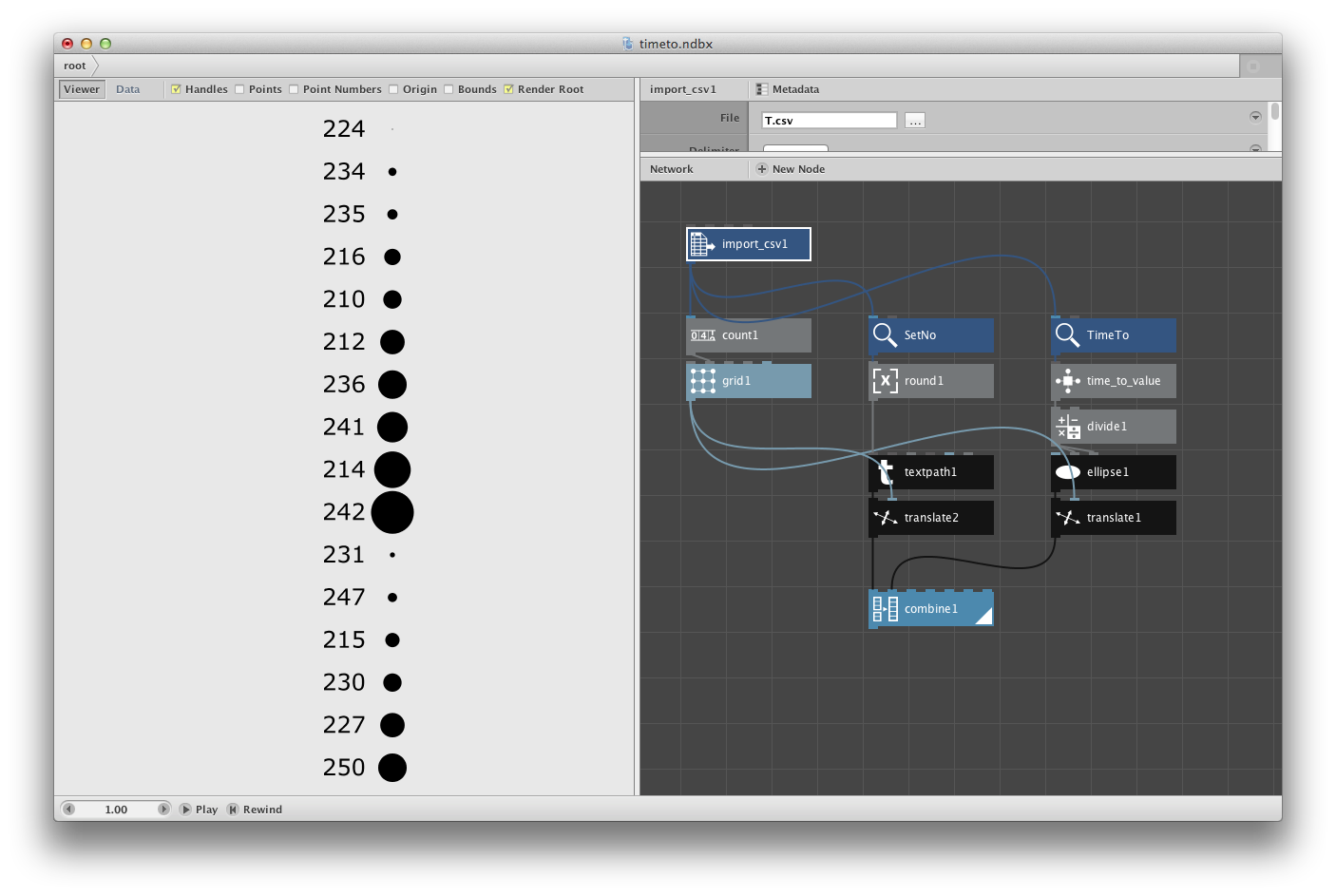

    I've uploaded a video that shows the process of creating a custom node and how to link it to NodeBox: https://vimeo.com/89486032
