Show your WorkFrom the old forum

Make Table

5 replies Last reply

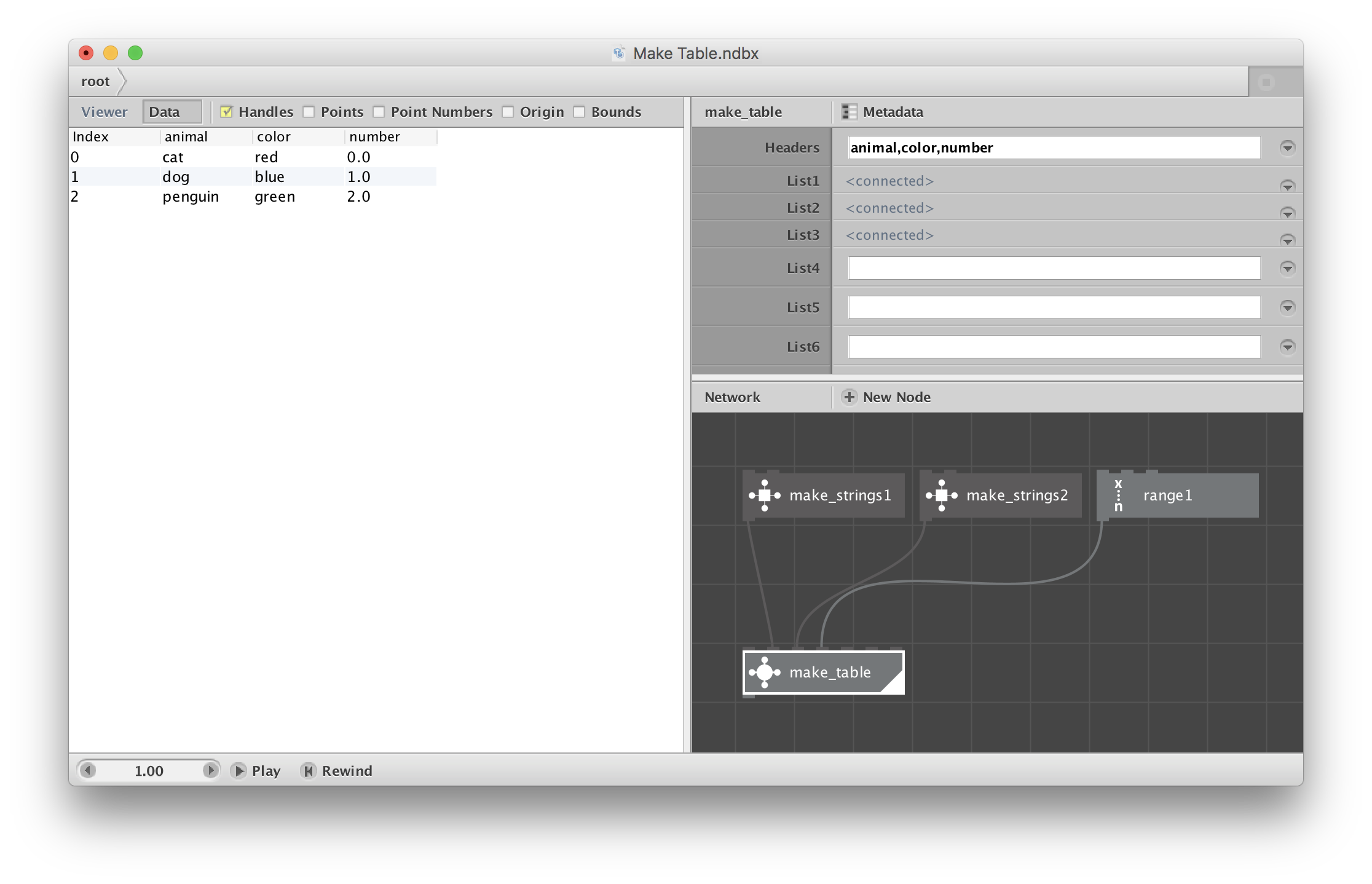

  1. This is a general purpose version of a subnetwork I posted earlier. This version allows you to easily make a table of up to six columns. Just enter the header names as a comma-separated list then hook up as many lists as you need to populate the columns. For best results make sure the lists have the same number of members (or has only one member if you want to repeat that value on each row).

    Make_table outputs a table (technically a list of zipmaps) which you treat like any other table in NodeBox, You can filter it, sort it, do lookups, even export it as a CSV.

    This is the single most useful subnetwork I have ever created. I use it constantly. Frederik, if you're listening, I wish this was a standard NodeBox node. It would be easy to add to the next release!

    For tables with more than 6 columns, see the MERGE_TABLES comment below.

    Enjoy!

    John

    Copy link
  2. Yes Frederik, make this happen, I agree,

    Lucas

    Copy link
  3. Here is a bonus for you table hounds: Merge_Tables.

    This subnetwork allows you to create tables with more than six columns by merging two smaller tables. Just connect the two tables. The resulting table will have columns from both. For best results make sure both tables have the same number of rows.

    Frederik, I really think make_table should be a standard node. I'm not sure about merge_tables though. It's nice to have but less often needed.

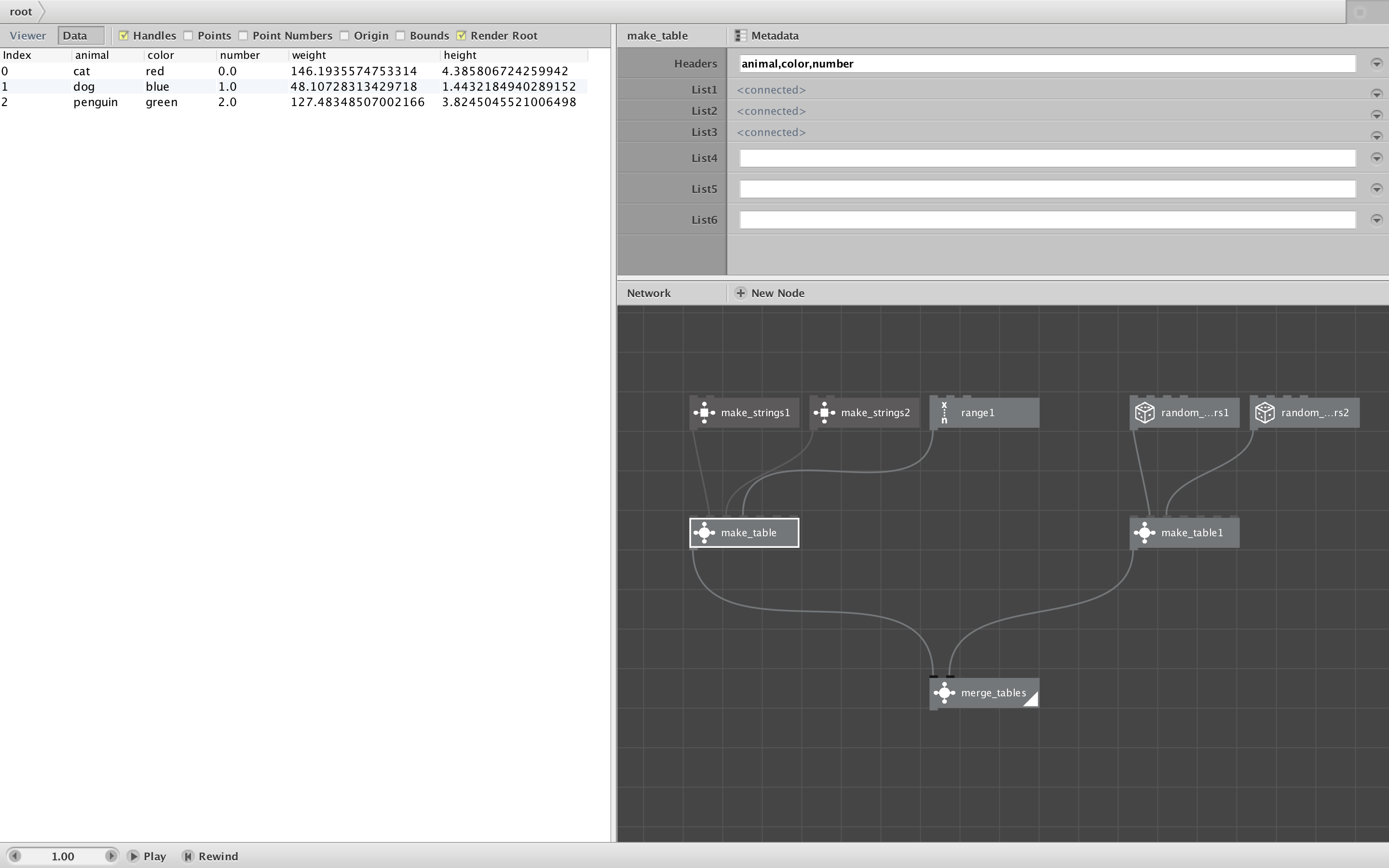

    Demo network and screenshot attached. Enjoy!

    Copy link
  4. NodeBox team

    This looks extremely useful! I'll find some time this week to add it to NodeBox.

    Copy link
  5. NodeBox team

    I've added the make_table node. There are some intricacies with missing data and missing headers I had to figure out, but everything looks okay now.

    I've kindly requested Lucas makes an icon for it, and then it's good to go :-)

    Copy link
  6. Wonderful!

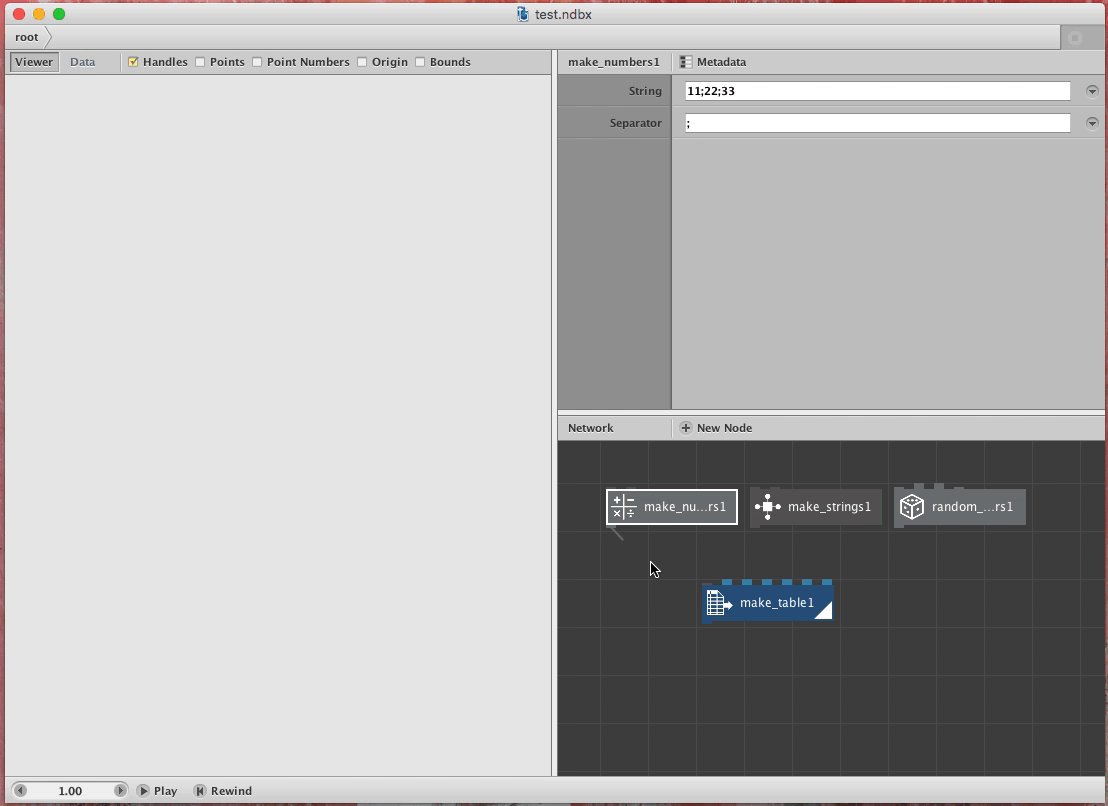

    Nice attention to detail as always with the missing headers, etc. I also appreciate your animated GIF demo.

    John

    Copy link
